SN74HC540DW Buffer, Inverting 1 Element 8 Bit per Element 3-State Output 20-SOIC

Product Categories
SZ ADE Electronics Co., Ltd
Contact Now

SN74HC540DW Buffer, Inverting 1 Element 8 Bit per Element 3-State Output 20-SOIC

Brand Name : original

Model Number : SN74HC540DW

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T

Supply Ability : 100,000

Delivery Time : 1-3working days

Packaging Details : carton box

Package : Tube

Logic Type : Buffer, Inverting

Number of Elements : 1

Number of Bits per Element : 8

Output Type : 3-State

Current - Output High, Low : 7.8mA, 7.8mA

Voltage - Supply : 2V ~ 6V

Operating Temperature : -40°C ~ 85°C (TA)

Contact Now

SN74HC540DW Buffer, Inverting 1 Element 8 Bit per Element 3-State Output 20-SOIC

Specifications of SN74HC540DW

TYPE DESCRIPTION
Category Integrated Circuits (ICs)
Logic
Buffers, Drivers, Receivers, Transceivers
Mfr Texas Instruments
Series 74HC
Package Tube
Logic Type Buffer, Inverting
Number of Elements 1
Number of Bits per Element 8
Input Type -
Output Type 3-State
Current - Output High, Low 7.8mA, 7.8mA
Voltage - Supply 2V ~ 6V
Operating Temperature -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 20-SOIC (0.295", 7.50mm Width)
Supplier Device Package 20-SOIC
Base Product Number 74HC540

Features of SN74HC540DW


• Wide operating voltage range of 2 V to 6 V
• High-current 3-state outputs drive bus lines directly or up to 15 LSTTL loads
• Low power consumption, 80-μA max ICC
• Typical tpd = 8 ns
• ±6-mA output drive at 5 V
• Low input current of 1 μA max
• Data flow-through pinout (all inputs on opposite side from outputs)

Applications of SN74HC540DW


These octal buffers and line drivers feature the performance of the popular ’HC240 series and offer a pinout with inputs and outputs on opposite sides of the package. This arrangement greatly facilitates printed circuit board layout.


Environmental & Export Classifications of SN74HC540DW

ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001

SN74HC540DW Buffer, Inverting 1 Element 8 Bit per Element 3-State Output 20-SOIC



Wholesale SN74HC540DW Buffer, Inverting 1 Element 8 Bit per Element 3-State Output 20-SOIC from china suppliers

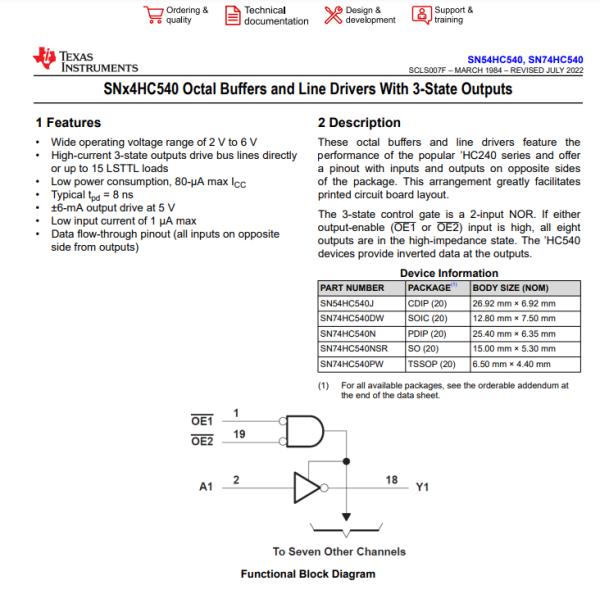

SN74HC540DW Buffer, Inverting 1 Element 8 Bit per Element 3-State Output 20-SOIC Images
