TS5A3159QDBVRQ1 1 Circuit IC Integrated Circuit Chip Switch 2:1 1.3Ohm SOT-23-6

Brand Name : original

Model Number : TS5A3159QDBVRQ1

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T

Supply Ability : 1000

Delivery Time : 3-5ddays

Packaging Details : carton box

Multiplexer/Demultiplexer Circuit : 2:01

Number of Circuits : 1

On-State Resistance (Max) : 1.3Ohm

Channel-to-Channel Matching (ΔRon) : 100mOhm

Voltage - Supply, Single (V+) : 1.65V ~ 5.5V

Switch Time (Ton, Toff) (Max) : 35ns, 20ns

-3db Bandwidth : 100MHz

Charge Injection : 36pC

Contact Now

TS5A3159QDBVRQ1 1 Circuit IC Integrated Circuit Chip Switch 2:1 1.3Ohm SOT-23-6

Specifications of TS5A3159QDBVRQ1

TYPE DESCRIPTION
Category Integrated Circuits (ICs)
Interface
Analog Switches, Multiplexers, Demultiplexers
Mfr Texas Instruments
Series Automotive, AEC-Q100
Package Tape & Reel (TR)
Cut Tape (CT)
Switch Circuit SPDT
Multiplexer/Demultiplexer Circuit 2:01
Number of Circuits 1
On-State Resistance (Max) 1.3Ohm
Channel-to-Channel Matching (ΔRon) 100mOhm
Voltage - Supply, Single (V+) 1.65V ~ 5.5V
Voltage - Supply, Dual (V±) -
Switch Time (Ton, Toff) (Max) 35ns, 20ns
-3db Bandwidth 100MHz
Charge Injection 36pC
Channel Capacitance (CS(off), CD(off)) 23pF
Current - Leakage (IS(off)) (Max) 6nA
Crosstalk -65dB @ 1MHz
Operating Temperature -40°C ~ 125°C (TA)
Mounting Type Surface Mount
Package / Case SOT-23-6
Supplier Device Package SOT-23-6
Base Product Number TS5A3159

Features of TS5A3159QDBVRQ1


• Qualified for Automotive Applications
• AEC-Q100 Qualified with the Following Results:
– Device Temperature Grade 1: –40°C to +125°C Ambient Operating Temperature Range
– Device HBM ESD Classification Level 2
– Device CDM ESD Classification Level C4B
• Specified Break-Before-Make Switching
• Low ON-State Resistance (1 Ω)
• Control Inputs are 5-V Tolerant
• Low Charge Injection
• Excellent ON-Resistance Matching
• Low Total Harmonic Distortion
• 1.65-V to 5.5-V Single-Supply Operation

Applications of TS5A3159QDBVRQ1


• Automotive Infotainment and Cluster
• Body Electronics and Lighting


Environmental & Export Classifications of TS5A3159QDBVRQ1

ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001


TS5A3159QDBVRQ1 1 Circuit IC Integrated Circuit Chip Switch 2:1 1.3Ohm SOT-23-6


Wholesale TS5A3159QDBVRQ1 1 Circuit IC Integrated Circuit Chip Switch 2:1 1.3Ohm SOT-23-6 from china suppliers

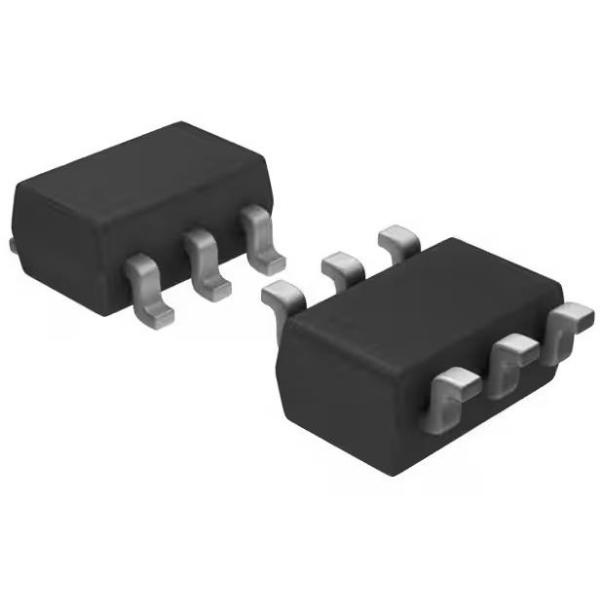

TS5A3159QDBVRQ1 1 Circuit IC Integrated Circuit Chip Switch 2:1 1.3Ohm SOT-23-6 Images
