DMG4822SSD-13 Mosfet Array 30V 10A 1.42W Electronic IC Chips Surface Mount 8-SO

Product Categories
SZ ADE Electronics Co., Ltd
Contact Now

DMG4822SSD-13 Mosfet Array 30V 10A 1.42W Electronic IC Chips Surface Mount 8-SO

Brand Name : original

Model Number : DMG4822SSD-13

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T

Supply Ability : 100,000

Delivery Time : 1-3working days

Packaging Details : carton box

Configuration : 2 N-Channel (Dual)

FET Feature : Logic Level Gate

Drain to Source Voltage (Vdss) : 30V

Current - Continuous Drain (Id) @ 25°C : 10A

Rds On (Max) @ Id, Vgs : 20mOhm @ 8.5A, 10V

Vgs(th) (Max) @ Id : 3V @ 250µA

Gate Charge (Qg) (Max) @ Vgs : 10.5nC @ 10V

Input Capacitance (Ciss) (Max) @ Vds : 478.9pF @ 16V

Contact Now

DMG4822SSD-13 Mosfet Array 30V 10A 1.42W Electronic IC Chips Surface Mount 8-SO

Specifications of DMG4822SSD-13

TYPE DESCRIPTION
Category Discrete Semiconductor Products
Transistors
FETs, MOSFETs
FET, MOSFET Arrays
Mfr Diodes Incorporated
Series -
Package Tape & Reel (TR)
Cut Tape (CT)
Technology MOSFET (Metal Oxide)
Configuration 2 N-Channel (Dual)
FET Feature Logic Level Gate
Drain to Source Voltage (Vdss) 30V
Current - Continuous Drain (Id) @ 25°C 10A
Rds On (Max) @ Id, Vgs 20mOhm @ 8.5A, 10V
Vgs(th) (Max) @ Id 3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 10.5nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds 478.9pF @ 16V
Power - Max 1.42W
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package 8-SO
Base Product Number DMG4822


Features of DMG4822SSD-13

* Low On-Resistance
* Low Input Capacitance
* Low Input/Output Leakage
* Low Gate Resistance
* Fast Switching Speed
* Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
* Halogen and Antimony Free. “Green” Device (Note 3)

Applications of DMG4822SSD-13


* General Purpose Interfacing Switch
* Power Management Functions
* DC-DC Converters
* Analog Switch



Environmental & Export Classifications of DMG4822SSD-13

ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095


DMG4822SSD-13 Mosfet Array 30V 10A 1.42W Electronic IC Chips Surface Mount 8-SO


Wholesale DMG4822SSD-13 Mosfet Array 30V 10A 1.42W Electronic IC Chips Surface Mount 8-SO from china suppliers

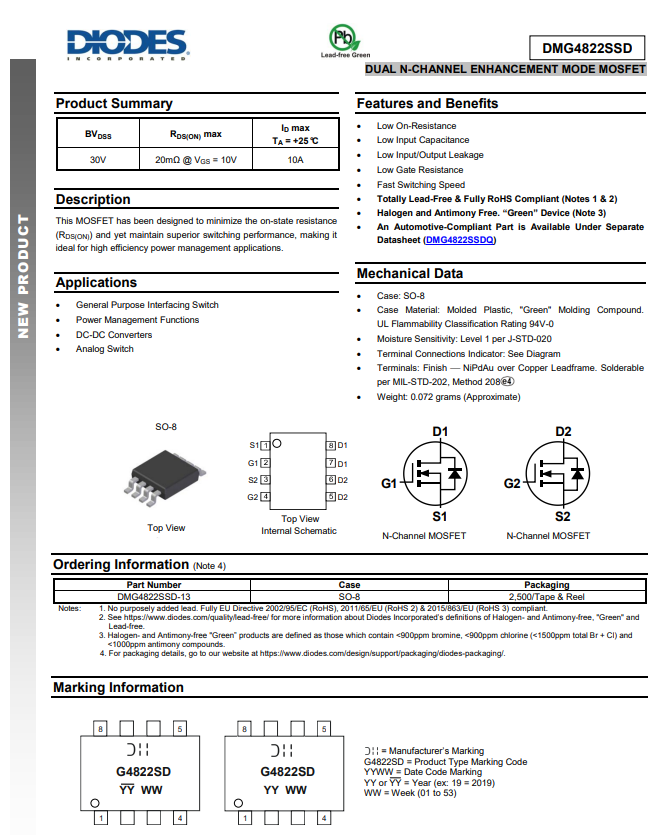

DMG4822SSD-13 Mosfet Array 30V 10A 1.42W Electronic IC Chips Surface Mount 8-SO Images
