ACS758LCB-100U Current Sensor 100A 1 Channel Hall Effect Open Loop Unidirectional 5-CB
Specifications of ACS758LCB-100U
| TYPE | DESCRIPTION |
| Category | Sensors, Transducers |
| | Current Sensors |
| Mfr | Allegro MicroSystems |
| Series | Automotive, AEC-Q100 |
| Package | Tube |
| For Measuring | DC |
| Sensor Type | Hall Effect, Open Loop |
| Current - Sensing | 100A |
| Number of Channels | 1 |
| Output | Ratiometric, Voltage |
| Sensitivity | 40mV/A |
| Frequency | DC ~ 120kHz |
| Linearity | ±1.25% |
| Accuracy | ±2.4% |
| Voltage - Supply | 3V ~ 5.5V |
| Response Time | 4µs |
| Current - Supply (Max) | 13.5mA |
| Operating Temperature | -40°C ~ 150°C |
| Polarization | Unidirectional |
| Mounting Type | Through Hole |
| Package / Case | 5-CB Formed Leads, PFF |
| Supplier Device Package | 5-CB Module |
| Base Product Number | ACS758 |
Specifications of ACS758LCB-100U

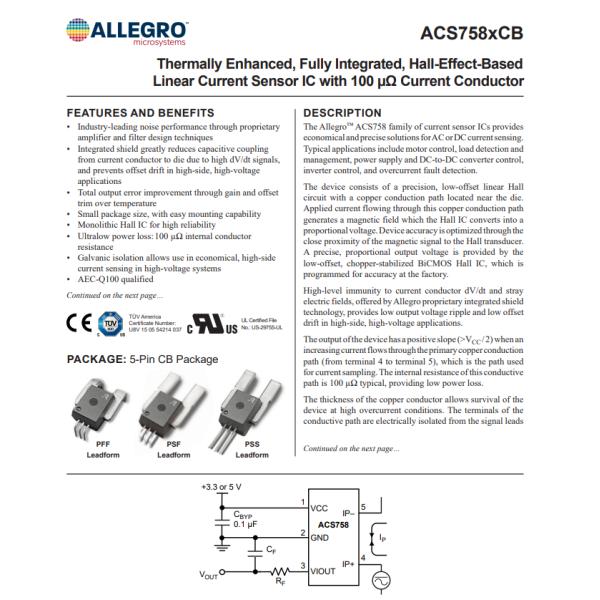

• Industry-leading noise performance through proprietary amplifier and filter design techniques
• Integrated shield greatly reduces capacitive coupling from current conductor to die due to high dV/dt signals,
and prevents offset drift in high-side, high-voltage applications
• Total output error improvement through gain and offset trim over temperature
• Small package size, with easy mounting capability
• Monolithic Hall IC for high reliability
• Ultralow power loss:100 µΩ internal conductor resistance
• Galvanic isolation allows use in economical, high-side current sensing in high-voltage systems
• AEC-Q100 qualified
Introduction of ACS758LCB-100U
The Allegro™ ACS758 family of current sensor ICs provides economical and precise solutions for AC or DC current sensing. Typical applications include motor control, load detection and management, power supply and DC-to-DC converter control, inverter control, and overcurrent fault detection.
Environmental & Export Classifications of ACS758LCB-100U
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
