TUSB2046BVFR Electronic IC Chips Controller USB 2.0 USB Interface 32-LQFP

TUSB2046BVFR Electronic IC Chips Controller USB 2.0 USB Interface 32-LQFP

IC HUB CONTROLLER USB 32LQFP

Specifications of TUSB2046BVFR

Features of TUSB2046BVFR

• Fully Compliant With the USB Specification as a Full-Speed Hub: TID #30220231
• 32-Pin LQFP (1) Package With a 0.8-mm Terminal Pitch or QFN Package With a 0.5-mm Pin Pitch
• 3.3-V Low-Power ASIC Logic
• Integrated USB Transceivers
• State Machine Implementation Requires No Firmware Programming
• One Upstream Port and Four Downstream Ports
• All Downstream Ports Support Full-Speed and Low-Speed Operations
• Two Power Source Modes
– Self-Powered Mode
– Bus-Powered Mode
• Power Switching and Overcurrent Reporting Is Provided Ganged or Per Port
• Supports Suspend and Resume Operations
• Supports Programmable Vendor ID and Product ID With External Serial EEPROM
• 3-State EEPROM Interface Allows EEPROM Sharing
• Push-Pull Outputs for PWRON Eliminate the Need for External Pullup Resistors
• Noise Filtering on OVRCUR Provides Immunity to Voltage Spikes
• Package Pinout Allows 2-Layer PCB
• Low EMI Emission Achieved by a 6-MHz Crystal Input
• Migrated From Proven TUSB2040 Hub
• Lower Cost Than the TUSB2040 Hub
• Enhanced System ESD Performance
• No Special Driver Requirements; Works Seamlessly With Any Operating System With USB Stack Support
• Supports 6-MHz Operation Through a Crystal Input or a 48-MHz Input Clock

Applications of TUSB2046BVFR

• Computer Systems
• Docking Stations

Environmental & Export Classifications of TUSB2046BVFR

TUSB2046BVFR Electronic IC Chips

USB 2.0 Electronic IC Chips

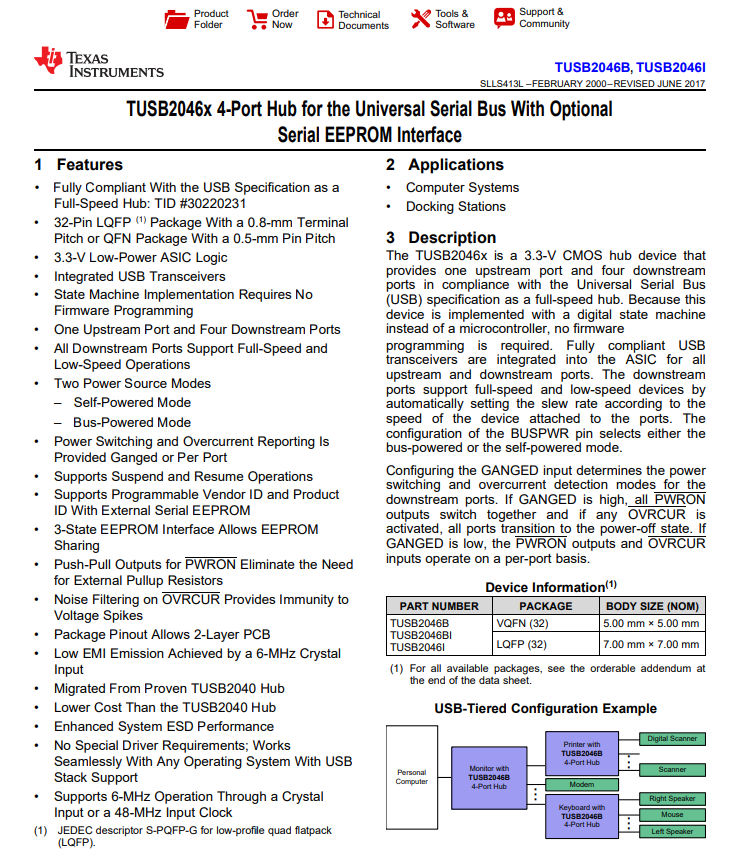

TUSB2046BVFR Electronic IC Chips Controller USB 2.0 USB Interface 32-LQFP Images
