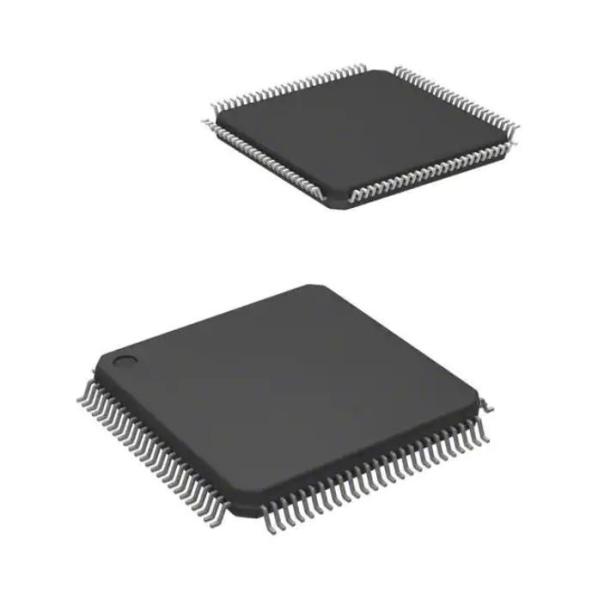

TMS320LF2406APZS Dip Ic Sockets Ic Mcu 16bit 64kb Flash 100lqfp

Name: TMS320LF2406APZS Dip Ic Sockets Ic Mcu 16bit 64kb Flash 100lqfp
Brand: original
Price: 1 USD

Brand Name : original

Model Number : TMS320LF2406APZS

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T, L/C

Supply Ability : 100,000

Delivery Time : 1-3working days

Packaging Details : carton box

Package : Tray

Product Status : Active

Digi-Key Programmable : Verified

Core Processor : C2xx DSP

Core Size : 16-Bit

Speed : 40MHz

Peripherals : CANbus, SCI, SPI, UART/USART

Package Tray Product Status Active Digi-Key Programmable Verified Core Processor C2xx DSP Core Size : POR, PWM, WDT

Contact Now

TMS320LF2406APZS Dip Ic Sockets Ic Mcu 16bit 64kb Flash 100lqfp

C2xx DSP C2000™ C24x 16-Bit Microcontroller IC 16-Bit 40MHz 64KB (32K x 16) FLASH 100-LQFP (14x14)

Specifications of TMS320LF2406APZS

TYPE	DESCRIPTION
Category	Integrated Circuits (ICs)
	Embedded
	Microcontrollers
Mfr	Texas Instruments
Series	C2000™ C24x 16-Bit
Package	Tray
Product Status	Active
Digi-Key Programmable	Verified
Core Processor	C2xx DSP
Core Size	16-Bit
Speed	40MHz
Connectivity	CANbus, SCI, SPI, UART/USART
Peripherals	POR, PWM, WDT
Number of I/O	41
Program Memory Size	64KB (32K x 16)
Program Memory Type	FLASH
EEPROM Size	-
RAM Size	5K x 8
Voltage - Supply (Vcc/Vdd)	3V ~ 3.6V
Data Converters	A/D 16x10b
Oscillator Type	Internal
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	100-LQFP
Supplier Device Package	100-LQFP (14x14)
Base Product Number	TMS320

Features of TMS320LF2406APZS

• High-Performance Static CMOS Technology

− 25-ns Instruction Cycle Time (40 MHz)

− 40-MIPS Performance

− Low-Power 3.3-V Design

• Based on TMS320C2xx DSP CPU Core

− Code-Compatible With F243/F241/C242

− Instruction Set and Module Compatible With F240

• Flash (LF) and ROM (LC) Device Options

− LF240xA: LF2407A, LF2406A, LF2403A, LF2402A

− LC240xA: LC2406A, LC2404A, LC2403A, LC2402A

On-Chip Memory

− Up to 32K Words x 16 Bits of Flash EEPROM (4 Sectors) or ROM

− Programmable “Code-Security” Feature for the On-Chip Flash/ROM

− Up to 2.5K Words x 16 Bits of Data/Program RAM

− 544 Words of Dual-Access RAM

− Up to 2K Words of Single-Access RAM

• Boot ROM (LF240xA Devices)

− SCI/SPI Bootloader

• Up to Two Event-Manager (EV) Modules (EVA and EVB), Each Includes:

− Two 16-Bit General-Purpose Timers

− Eight 16-Bit Pulse-Width Modulation (PWM) Channels Which Enable:

− Three-Phase Inverter Control

− Center- or Edge-Alignment of PWM Channels

− Emergency PWM Channel Shutdown With External PDPINTx Pin

− Programmable Deadband (Deadtime) Prevents Shoot-Through Faults

− Three Capture Units for Time-Stamping of External Events

− Input Qualifier for Select Pins

− On-Chip Position Encoder Interface Circuitry

− Synchronized A-to-D Conversion

− Designed for AC Induction, BLDC, Switched Reluctance, and Stepper Motor Control

− Applicable for Multiple Motor and/or Converter Control

Applications of TMS320LF2406APZS

• Package Options

− 144-Pin LQFP PGE (LF2407A)

− 100-Pin LQFP PZ (2406A, LC2404A)

− 64-Pin TQFP PAG (LF2403A, LC2403A, LC2402A)

− 64-Pin QFP PG (2402A)

• Extended Temperature Options (A and S)

− A: − 40°C to 85°C

− S: − 40°C to 125°C

Environmental & Export Classifications of TMS320LF2406APZS

ATTRIBUTE	DESCRIPTION
RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	2 (1 Year)
REACH Status	REACH Unaffected
ECCN	3A991A2
HTSUS	8542.31.0001
