TPS2075DBR Dip Ic Sockets Ic Pwr Switch N-Chan 1:4 24ssop TPS2075DBR-ND

Name: TPS2075DBR Dip Ic Sockets Ic Pwr Switch NChan 14 24ssop TPS2075DBRND
Brand: original
Price: 1 USD

Brand Name : original

Model Number : TPS2075DBR

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T, L/C

Supply Ability : 100,000

Delivery Time : 1-3working days

Packaging Details : carton box

Rds On (Typ) : 100mOhm

Features : Power Good, Status Flag

Fault Protection : Over Temperature

Operating Temperature : -40°C ~ 125°C (TJ)

Mounting Type : Surface Mount

Supplier Device Package : 24-SSOP

Base Product Number : 24-SSOP (0.209", 5.30mm Width)

Rds On (Typ) 100mOhm Features Power Good, Status Flag Fault Protection Over Temperature Operating Te : TPS2075

Contact Now

TPS2075DBR Dip Ic Sockets Ic Pwr Switch N-Chan 1:4 24ssop TPS2075DBR-ND

Power Switch/Driver 1:4 N-Channel 100mA 24-SSOP

Specifications of TPS2075DBR

TYPE	DESCRIPTION
Category	Integrated Circuits (ICs)
	Power Management (PMIC)
	Power Distribution Switches, Load Drivers
Mfr	Texas Instruments
Series	-
Package	Tape & Reel (TR)
Product Status	Active
Switch Type	USB Switch
Number of Outputs	4
Ratio - Input:Output	0.044444444
Output Configuration	High Side
Output Type	N-Channel
Interface	On/Off
Voltage - Load	4.5V ~ 5.5V
Voltage - Supply (Vcc/Vdd)	Not Required
Current - Output (Max)	100mA
Rds On (Typ)	100mOhm
Input Type	-
Features	Power Good, Status Flag
Fault Protection	Over Temperature
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	24-SSOP
Package / Case	24-SSOP (0.209", 5.30mm Width)
Base Product Number	TPS2075

Features of TPS2075DBR

• Complete USB Hub Power Solutio

• Meets USB Specifications 1.1 and 2.0

• Independent Thermal and Short-Circuit Protect

• 3.3-V Regulator for USB Hub Contro

• Overcurrent Logic Ou

• 4.5-V to 5.5-V Operating Rating

• CMOS- and TTL-Compatible Enable Inputs

• 185 µA Bus-Power Supply Current

• Available in 24-Pin SSOP Package

• –40°C to 85°C Ambient Temperature Range

Applications of TPS2075DBR

• Hosts/self-powered hubs (SPH)

• Bus-powered hubs (BPH)

• Low-power, bus-powered functions

• High-power, bus-powered functions

• Self-powered funct

Environmental & Export Classifications of TPS2075DBR

ATTRIBUTE	DESCRIPTION
RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.39.0001

TPS2075DBR Dip Ic Sockets Ic Pwr Switch N-Chan 1:4 24ssop TPS2075DBR-ND

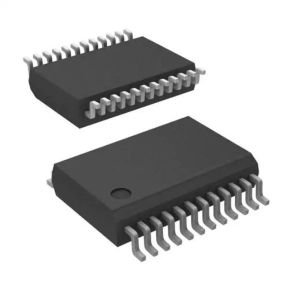

TPS2075DBR Dip Ic Sockets Ic Pwr Switch N-Chan 1:4 24ssop TPS2075DBR-ND Images
