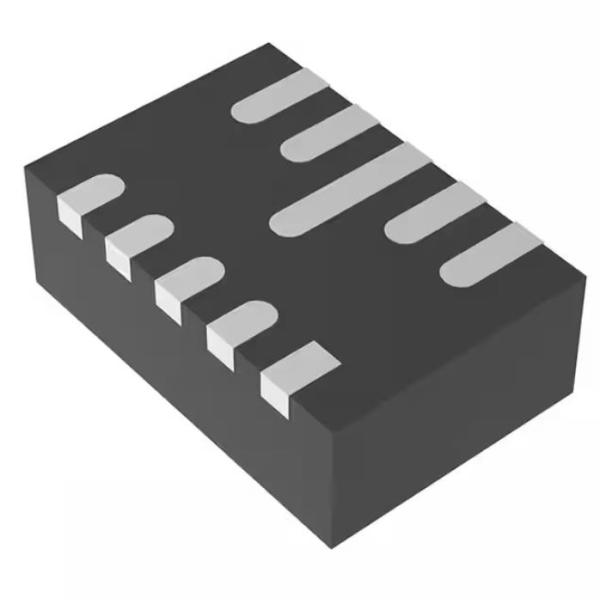

TPS63802DLAR Dip Ic Sockets Ic Power Management 296-Tps63802dlardkr-Nd

Brand Name : original

Model Number : TPS63802DLAR

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T, L/C

Supply Ability : 100,000

Delivery Time : 1-3working days

Packaging Details : carton box

Number of Outputs : 1

Voltage - Input (Min) : 1.3V

Voltage - Input (Max) : 5.5V

Voltage - Output (Min/Fixed) : 1.8V

Voltage - Output (Max) : 5.2V

Current - Output : 2A

Frequency - Switching : 2.1MHz

Synchronous Rectifier : Yes

Contact Now

TPS63802DLAR Dip Ic Sockets Ic Power Management 296-Tps63802dlardkr-Nd

Buck-Boost Switching Regulator IC Positive Adjustable 1.8V 1 Output 2A 10-VFDFN

Specifications of TPS63802DLAR

TYPE DESCRIPTION
Category Integrated Circuits (ICs)
Power Management (PMIC)
Voltage Regulators - DC DC Switching Regulators
Mfr Texas Instruments
Series -
Package Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
Product Status Active
Function Step-Up/Step-Down
Output Configuration Positive
Topology Buck-Boost
Output Type Adjustable
Number of Outputs 1
Voltage - Input (Min) 1.3V
Voltage - Input (Max) 5.5V
Voltage - Output (Min/Fixed) 1.8V
Voltage - Output (Max) 5.2V
Current - Output 2A
Frequency - Switching 2.1MHz
Synchronous Rectifier Yes
Operating Temperature -40°C ~ 125°C (TJ)
Mounting Type Surface Mount
Package / Case 10-VFDFN
Supplier Device Package 10-VSON-HR (3x2)
Base Product Number TPS63802

Features of TPS63802DLAR

• Input voltage range: 1.3V to 5.5 V
– Device input voltage >1.8 V for start-up
• Output voltage range: 1.8 V to 5.2 V (adjustable)
• 2-A output current forVI≥ 2.3 V, VO = 3.3 V
• High efficiency over theentire load range
– 11-µA operatingquiescent current
– Power save mode andmode selection forforced PWM-mode
• Peak current buck-boostmode architecture
– Defined transitionpoints between buck,buckboost, and boostoperation modes
– Forward and reversecurrent operation
– Start-up into pre-biased outputs
• Safety and robustoperation features
– Integrated soft start
– Overtemperature- andovervoltage-protection
– True shutdown functionwith load disconnect
– Forward and backwardcurrent limit
• Small solution size of21.5 mm2
– Tiny SON/DFN package(similar to QFN)
– Small 0.47-µH inductor
– Works with a 22-µFminimum output capacitor
• Create a custom designusing the TPS63802 withthe WEBENCH® PowerDesigner

Applications of TPS63802DLAR

• System pre-regulator (tracking and telematics, portable POS, home automation, IP network camera)
• Point-of-load regulation(wired sensor, port/cable adapter and dongle, electronic smart lock, IoT)
• Battery back-up supply (electricity meter, data concentrator, power quality meter)
• Thermoelectric device supply (TEC, optical modules)
• General purpose voltage stabilizer and converter
