DP83867ISRGZR Wireless Rf Module Ic Controller Ethernet 48vqfn

Name: DP83867ISRGZR Wireless Rf Module Ic Controller Ethernet 48vqfn
Brand: original
Price: 1 USD

Brand Name : original

Model Number : DP83867ISRGZR

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T, L/C

Supply Ability : 100,000

Delivery Time : 1-3working days

Packaging Details : carton box

Product Status : Active

Digi-Key Programmable : Not Verified

Protocol : Ethernet

Function : Physical Layer Controller

Interface : Serial

Standards : 10/100/1000 Base-TX PHY

Voltage - Supply : 1.1V, 2.5V

Current - Supply : 157mA

Contact Now

DP83867ISRGZR Wireless Rf Module Ic Controller Ethernet 48vqfn

Ethernet Physical Layer Controller 10/100/1000 Base-TX PHY Serial Interface 48-VQFN (7x7)

Specifications of DP83867ISRGZR

TYPE	DESCRIPTION
Category	Integrated Circuits (ICs) Interface Controllers
Mfr	Texas Instruments
Series	-
Package	Tape & Reel (TR) Cut Tape (CT) Digi-Reel®
Product Status	Active
Digi-Key Programmable	Not Verified
Protocol	Ethernet
Function	Physical Layer Controller
Interface	Serial
Standards	10/100/1000 Base-TX PHY
Voltage - Supply	1.1V, 2.5V
Current - Supply	157mA
Operating Temperature	-40°C ~ 85°C
Package / Case	48-VFQFN Exposed Pad
Supplier Device Package	48-VQFN (7x7)
Base Product Number	DP83867

Features of DP83867ISRGZR

• Extra low latency TX < 90 ns, RX < 290 ns

• Time Sensitive Network (TSN) compliant

• Low power consumption: 457 mW

• Exceeds 8000 V IEC 61000-4-2 ESD protection

• Meets EN55011 class B emission standards

• 16 programmable RGMII delay modes on RX/TX

• Integrated MDI termination resistors

• Programmable MAC interface termination impedance

• WoL (Wake-on-LAN) packet detection

• 25-MHz or 125-MHz synchronized clock output

• Start of Frame Detect for IEEE 1588 time stamp

• RJ45 mirror mode

• Fully compatible to IEEE 802.3 10BASE-Te, 100BASE-TX, and 1000BASE-T Specification

• Cable diagnostics

• RGMII and SGMII MAC interface options

• Configurable I/O voltage (3.3 V, 2.5 V, 1.8 V)

• Fast link drop mode

• JTAG support

Applications of DP83867ISRGZR

• Motor drives

• Industrial factory automation

• Field Bus Support

• Industrial embedded computing

• Wired and wireless communications infrastructure

• Test and measurement

• Consumer electronics

Environmental & Export Classifications of DP83867ISRGZR

ATTRIBUTE	DESCRIPTION
RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.39.0001

DP83867ISRGZR Wireless Rf Module Ic Controller Ethernet 48vqfn

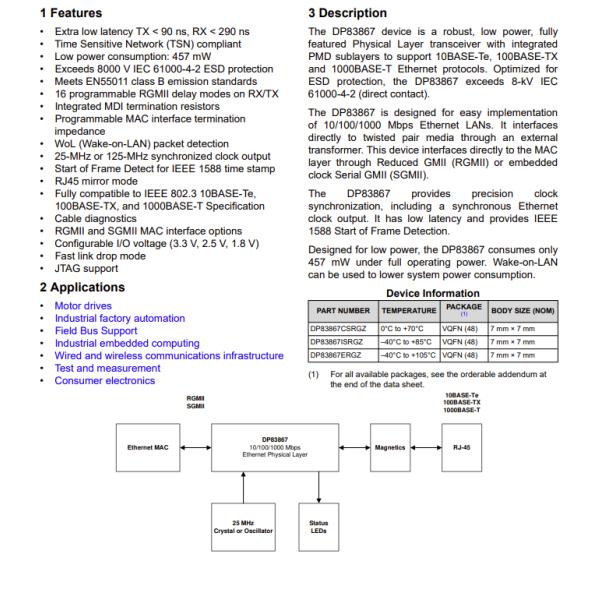

DP83867ISRGZR Wireless Rf Module Ic Controller Ethernet 48vqfn Images
