SNJ54HC393J Counter IC Element Bit DUAL 4-BIT BINARY COUNTE 5V

Brand Name : original

Model Number : SNJ54HC393J

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T

Supply Ability : 100,000

Delivery Time : 1-3working days

Packaging Details : carton box

Voltage Range : 2 V to 6 V

Outputs : 10 LSTTL Loads

Low Power Consumption : 80-µA Max ICC

Typical tpd : 13 ns

Low Input Current : 1 µA Max

Supply voltage range, VCC : −0.5 V to 7 V

Input clamp current, IIK : ±20 mA

Storage temperature range, Tstg : −65°C to 150°C

Contact Now

SNJ54HC393J Counter IC Element Bit DUAL 4-BIT BINARY COUNTE 5V

54HC393 DUAL 4-BIT BINARY COUNTE


Specifications of SNJ54HC393J

TYPE DESCRIPTION
Category Integrated Circuits (ICs)
Logic
Counters, Dividers
Mfr Texas Instruments
Series *
Package Bulk
Product Status Active
Base Product Number 54HC393


Features of SNJ54HC393J

 Wide Operating Voltage Range of 2 V to 6 V
 Outputs Can Drive Up To 10 LSTTL Loads
 Low Power Consumption, 80-µA Max ICC
 Typical tpd = 13 ns
 ±4-mA Output Drive at 5 V
 Low Input Current of 1 µA Max
 Dual 4-Bit Binary Counters With Individual Clocks
 Direct Clear for Each 4-Bit Counter
 Can Significantly Improve System Densities by Reducing Counter Package Count by 50 Percent

Descriptions of SNJ54HC393J

The ’HC393 devices contain eight flip-flops and additional gating to implement two individual 4-bit
counters in a single package. These devices comprise two independent 4-bit binary counters,
each having a clear (CLR) and a clock (CLK) input. N-bit binary counters can be implemented
with each package, providing the capability of divide by 256. The ’HC393 devices have parallel
outputs from each counter stage so that any submultiple of the input count frequency is available for system timing signals.

Environmental & Export Classifications of SNJ54HC393J

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.39.0001

SNJ54HC393J Counter IC Element Bit DUAL 4-BIT BINARY COUNTE 5V


Wholesale SNJ54HC393J Counter IC Element Bit DUAL 4-BIT BINARY COUNTE 5V from china suppliers

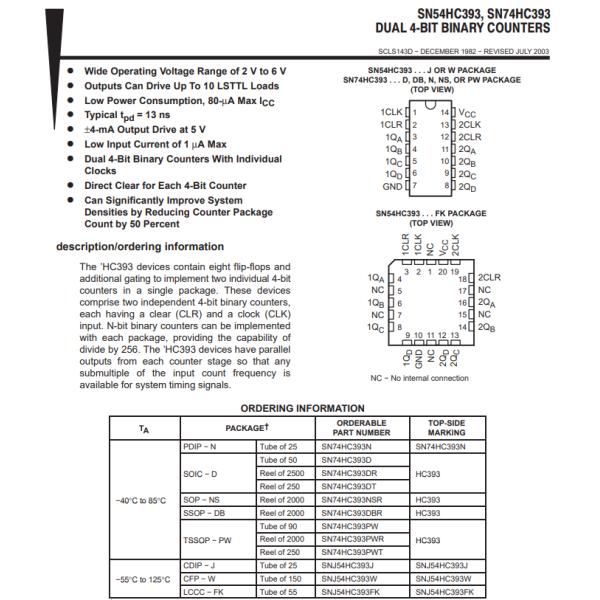

SNJ54HC393J Counter IC Element Bit DUAL 4-BIT BINARY COUNTE 5V Images
