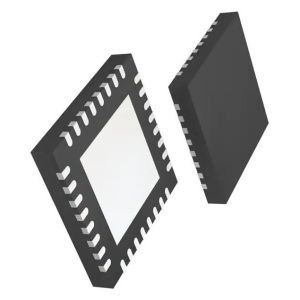

LMH1208RTVR Video Driver IC Serial AES10 DVB-ASI SMPTE 32-WQFN
Video Driver IC Serial AES10, DVB-ASI, SMPTE 32-WQFN (5x5) Package
LMH1208 device is a 12G UHD-SDI low power dual output cable driver. It supports SMPTE video rates up to 11.88 Gbps, enabling UHD video for 4K/8K applications. The additional equalized 100-Ω driver output on the host-side can be used for monitoring or signal distribution purposes.
Specifications of LMH1208RTVR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) Linear Video Processing |
| Mfr | |
| Series | |
| Package | tape and reel |
| Product Status | |
| Function | |
| Applications | |
| Standards | |
| Control Interface | |
| Voltage - Supply | |
| Mounting Type | |
| Package / Case | |
| Supplier Device Package | |
| Base Product Number | LMH1208 |
Features of LMH1208RTVR
• Supports ST-2082-1 (12G), ST-2081-1 (6G), ST424 (3G), ST-292 (HD), and ST-259 (SD)
• Compatible with DVB-ASI and AES10 (MADI)
• Dual differential output cable drivers
• On-chip 75-Ω termination and return loss compensation network
• Host-side equalized 100-Ω loop-back output
• Programmable slew rate control on 75-Ω outputs
• Programmable pre-emphasis and output amplitude on 75-Ω outputs
• Programmable de-emphasis and output amplitude on 100-Ω output
• Polarity inversion on 75-Ω and 100-Ω outputs
• Automatic power save in absence of input signal
– Power consumption: 25 mW (Typical)
• Power-down control through ENABLE pin
• Single 2.5-V supply
– Power consumption: 200 mW (typical)
• Programmable through pins, SPI, or SMBus interface
• –40°C to +85°C operating temperature range
• 5-mm × 5-mm, 32-pin WQFN package
range (−10 ̊
Environmental & Export Classifications
with avck-
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
APPLICATIONS of LMH1208RTVR
• SMPTE compatible serial digital interface
• UHDTV/4K/8K/HDTV/SDTV video
• IP media gateway
• Digital video processing and editing
